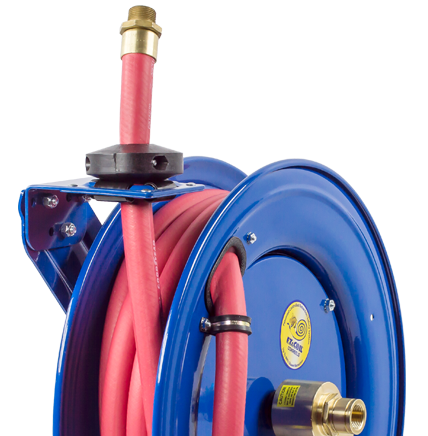

COXREELS? SH Series ?Super Hub?? spring driven hose reels, like the P Series, have a long history of dependable performance. The larger chassis and frame accommodate longer lengths and larger diameters of hose. Coxreels? original Super Hub? dual axle support system increases the stability during operation, reduces vibration and strengthens the structural integrity of the reel.
- Swivel seals: Nitrile
Design & Structure
- Guide arm adjusts to wall, floor, vehicle & overhead positions
- Solid one piece, heavy gauge 1?4" steel base & support post for maximum stability
- 1" solid steel axle & lubricated precision bearings for smooth rotation
- Enclosed factory tuned & matched cartridge-style spring motor
- Non-corrosive stainless steel spring, pawl & zinc plated ratchet
- Multi-position lock ratchet mechanism secures hose at desired length
- Professional grade heavy duty steel construction
- Rolled edges & ribbed discs provide strength & safety
- Leading 2-year manufacturer's limited warranty
- Made in the U.S.A. - Sold & Supported Worldwide
- SWIVEL - Machined from solid brass 90? full-flow NPT swivel for fuel dispensing applications.
- CARTRIDGE MOTOR - Lubricated and enclosed cartridge-style motor is easily removable for safe and convenient maintenance.
- CNC SPUN DISCS - Heavy duty CNC robotically spun and ribbed discs with rolled edges for greater strength, durability, hose protection and operator safety.
- MULTI-POSITION GUIDE ARM - Versatile guide arm adjusts to wall, floor, ceiling, and vehicle mounting positions.
- OTHER FEATURES INCLUDE - long lasting, chip resistant and rust inhibiting CPC powder coat finish, adjustable solid rubber hose stop,fuel dispensing hose, and sturdy permanently lubricated precision bearings.
- Low Pressure (Max 1000psi)
|Model||I.D||O.D||Length||Hose||Max PSI||Ship Weight (lbs)||Overall Dimensions (W) (H) (L)||Mounting Pattern (M) (N)||Base (X) (Y)||CAD Downloads|
|EZ-SHF-525||3/4"||1 3/16"||25'||Yes||300||57||9.38"(W) 25.5"(H) 19.5"(L)||4"(M) 5"(N)||6"(X) 6"(Y)||Request CAD File|
|EZ-SHFL-525||3/4"||1 3/16"||25'||No||300||45||9.38"(W) 25.5"(H) 19.5"(L)||4"(M) 5"(N)||6"(X) 6"(Y)||Request CAD File|
|SHF-N-525||3/4"||1 3/16"||25'||Yes||300||57||9.38"(W) 25.5"(H) 19.5"(L)||4"(M) 5"(N)||6"(X) 6"(Y)||Request CAD File|
