Alumi-Pro® Series // Spring Driven Specialty Reels

Coxreels

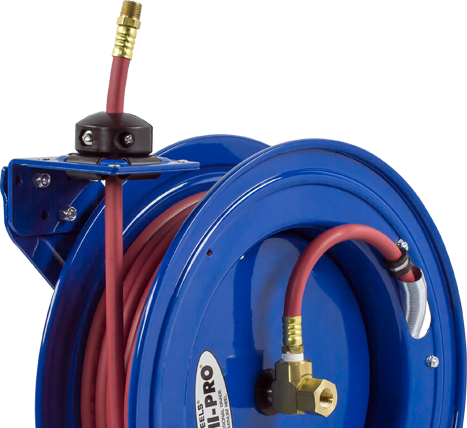

Series Image
  • Videos Videos Videos

Models

Hose/Cord/Cable Included
I.D
Hose / Cord Length
By Application
Filter Your Results
  • Low Pressure (Max 1000psi)
Alumi-Pro® Series
Model I.DO.DLengthHoseMax PSIShip Weight (lbs) Overall Dimensions (W) (H) (L) Mounting Pattern (M) (N) Base (X) (Y) CAD Downloads
P-LP-125-AL1/4"1/2"25'Yes300185.88"(W) 14.88"(H) 13.5"(L)  3"(M) 5"(N)  5"(X) 6"(Y)  CAD File
P-LP-150-AL1/4"1/2"50'Yes300256.75"(W) 18.63"(H) 17.13"(L)  4"(M) 5"(N)  6"(X) 6"(Y)  CAD File
P-LP-325-AL3/8"5/8"25'Yes300196.5"(W) 14.88"(H) 13.5"(L)  3"(M) 5"(N)  5"(X) 6"(Y)  CAD File
P-LP-350-AL3/8"5/8"50'Yes300276.75"(W) 18.63"(H) 17.13"(L)  4"(M) 5"(N)  6"(X) 6"(Y)  CAD File
P-LP-425-AL1/2"3/4"25'Yes300297"(W) 18.63"(H) 17.13"(L)  4"(M) 5"(N)  6"(X) 6"(Y)  CAD File
P-LP-430-AL1/2"3/4"30'Yes300287"(W) 18.63"(H) 17.13"(L)  4"(M) 5"(N)  6"(X) 6"(Y)  CAD File
P-LPL-125-AL1/4"1/2"25'No300155.88"(W) 14.88"(H) 13.5"(L)  3"(M) 5"(N)  5"(X) 6"(Y)  CAD File
P-LPL-150-AL1/4"1/2"50'No300186.75"(W) 18.63"(H) 17.13"(L)  4"(M) 5"(N)  6"(X) 6"(Y)  CAD File
P-LPL-325-AL3/8"5/8"25'No300166.5"(W) 14.88"(H) 13.5"(L)  3"(M) 5"(N)  5"(X) 6"(Y)  CAD File
P-LPL-350-AL3/8"5/8"50'No300206.75"(W) 18.63"(H) 17.13"(L)  4"(M) 5"(N)  6"(X) 6"(Y)  CAD File
P-LPL-425-AL1/2"3/4"25'No300227"(W) 18.63"(H) 17.13"(L)  4"(M) 5"(N)  6"(X) 6"(Y)  CAD File
P-LPL-430-AL1/2"3/4"30'No300217"(W) 18.63"(H) 17.13"(L)  4"(M) 5"(N)  6"(X) 6"(Y)  CAD File

Accessories

Swing Bracket
Swing Bracket
Swivel Bracket
Swivel Bracket
EZ-Up Bracket
EZ-Up Bracket
EZ-Up "I" or "H" Beam Adapter
EZ-Up "I" or "H" Beam Adapter
Mounting Bracket
Mounting Bracket
90° Elbows
90° Elbows
Hose Guards
Hose Guards
Hose Stops
Hose Stops
Quick Disconnects
Quick Disconnects
